Polynomial Regression

If your data points clearly will not fit a linear regression (a straight line

through all data points), it might be ideal for polynomial regression.

Polynomial regression, like linear regression, uses the relationship between the

variables x and y to find the best way to draw a line through the data points.

How Does it Work?

Python has methods for finding a relationship between data-points and to draw

a line of polynomial regression. We will show you how to use these methods

instead of going through the mathematic formula.

In the example below, we have registered 18 cars as they were passing a

certain tollbooth.

We have registered the car's speed, and the time of day (hour) the passing

occurred.

The x-axis represents the hours of the day and the y-axis represents the

speed:

Example

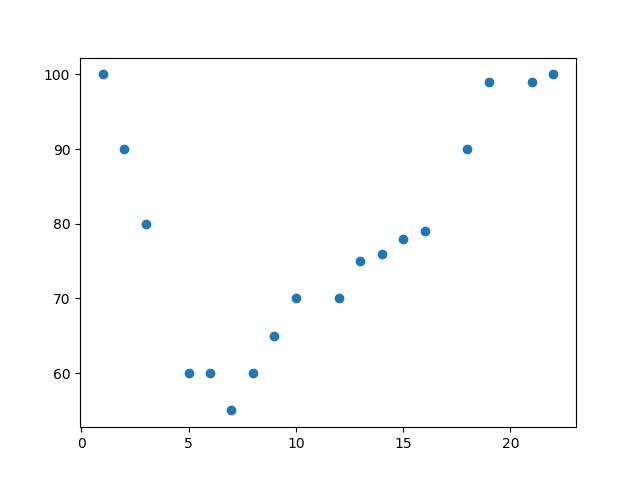

Start by drawing a scatter plot:



import matplotlib.pyplot as pltx = [1,2,3,5,6,7,8,9,10,12,13,14,15,16,18,19,21,22]y = [100,90,80,60,60,55,60,65,70,70,75,76,78,79,90,99,99,100]

plt.scatter(x, y)plt.show()

Result:





Run example »

Example

Start by drawing a scatter plot:

Result:

Example

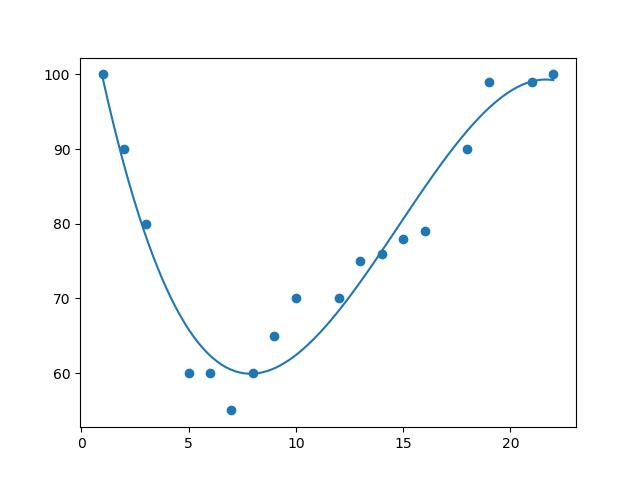

Import numpy and

matplotlib then draw the line of

Polynomial Regression:



import numpyimport matplotlib.pyplot as pltx = [1,2,3,5,6,7,8,9,10,12,13,14,15,16,18,19,21,22]y =

[100,90,80,60,60,55,60,65,70,70,75,76,78,79,90,99,99,100]mymodel =

numpy.poly1d(numpy.polyfit(x, y, 3))myline = numpy.linspace(1, 22, 100)plt.scatter(x, y)plt.plot(myline, mymodel(myline))

plt.show()

Result:





Run example »

Example

Import numpy and

matplotlib then draw the line of

Polynomial Regression:

Result:

Example Explained

Import the modules you need.

You can learn about the NumPy module in our NumPy Tutorial.

You can learn about the SciPy module in our SciPy Tutorial.

import numpyimport matplotlib.pyplot as plt

Create the arrays that represent the values of the x and y axis:

x = [1,2,3,5,6,7,8,9,10,12,13,14,15,16,18,19,21,22]y =

[100,90,80,60,60,55,60,65,70,70,75,76,78,79,90,99,99,100]

NumPy has a method that lets us make a polynomial model:

mymodel =

numpy.poly1d(numpy.polyfit(x, y, 3))

Then specify how the line will display, we start at position 1, and end at

position 22:

myline = numpy.linspace(1, 22, 100)

Draw the original scatter plot:

plt.scatter(x, y)

Draw the line of polynomial regression:

plt.plot(myline, mymodel(myline))

Display the diagram:

plt.show()

R-Squared

It is important to know how well the relationship between the values of the

x- and y-axis is, if there are no relationship the

polynomial

regression can not be used to predict anything.

The relationship is measured with a value called the r-squared.

The r-squared value ranges from 0 to 1, where 0 means no relationship, and 1

means 100% related.

Python and the Sklearn module will compute this value for you, all you have to

do is feed it with the x and y arrays:

Example

How well does my data fit in a polynomial regression?



import numpyfrom sklearn.metrics import r2_scorex =

[1,2,3,5,6,7,8,9,10,12,13,14,15,16,18,19,21,22]y =

[100,90,80,60,60,55,60,65,70,70,75,76,78,79,90,99,99,100]mymodel =

numpy.poly1d(numpy.polyfit(x, y, 3))print(r2_score(y, mymodel(x)))

Try if Yourself »

Example

How well does my data fit in a polynomial regression?

Note: The result 0.94 shows that there is a very good relationship,

and we can use polynomial regression in future

predictions.

Predict Future Values

Now we can use the information we have gathered to predict future values.

Example: Let us try to predict the speed of a car that passes the tollbooth

at around 17 P.M:

To do so, we need the same mymodel array

from the example above:

mymodel = numpy.poly1d(numpy.polyfit(x, y, 3))

Example

Predict the speed of a car passing at 17 P.M:



import numpyfrom sklearn.metrics import r2_scorex =

[1,2,3,5,6,7,8,9,10,12,13,14,15,16,18,19,21,22]y =

[100,90,80,60,60,55,60,65,70,70,75,76,78,79,90,99,99,100]mymodel =

numpy.poly1d(numpy.polyfit(x, y, 3))speed = mymodel(17)print(speed)



Run example »

Example

Predict the speed of a car passing at 17 P.M:

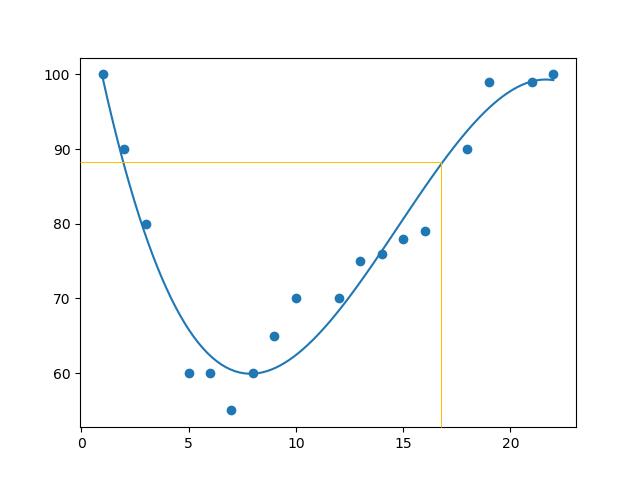

The example predicted a speed to be 88.87, which we also could read from the diagram:

Bad Fit?

Let us create an example where polynomial regression would not be the best method

to predict future values.

Example

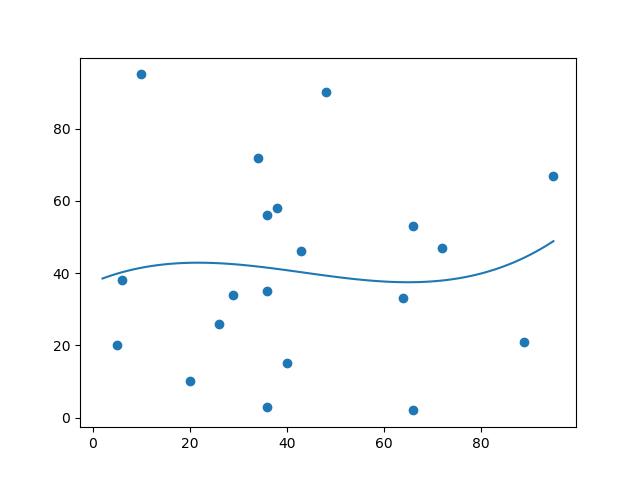

These values for the x- and y-axis should result in a very bad fit for

polynomial

regression:



import numpyimport matplotlib.pyplot as pltx =

[89,43,36,36,95,10,66,34,38,20,26,29,48,64,6,5,36,66,72,40]y =

[21,46,3,35,67,95,53,72,58,10,26,34,90,33,38,20,56,2,47,15]mymodel =

numpy.poly1d(numpy.polyfit(x, y, 3))myline = numpy.linspace(2, 95, 100)

plt.scatter(x, y)plt.plot(myline, mymodel(myline))plt.show()

Result:





Run example »

Example

These values for the x- and y-axis should result in a very bad fit for

polynomial

regression:

Result:

And the r-squared value?

Example

You should get a very low r-squared value.



import numpyfrom sklearn.metrics import r2_scorex =

[89,43,36,36,95,10,66,34,38,20,26,29,48,64,6,5,36,66,72,40]y =

[21,46,3,35,67,95,53,72,58,10,26,34,90,33,38,20,56,2,47,15]mymodel =

numpy.poly1d(numpy.polyfit(x, y, 3))print(r2_score(y, mymodel(x)))



Try if Yourself »

Example

You should get a very low r-squared value.

The result: 0.00995 indicates a very bad relationship, and tells us that this data set is not suitable for polynomial regression.
